5 Chamber of (70mm) Systems

the plastic shaping brand

Product Information

Lamine provides sound insulation up to 37 decibels with glass application.

It is not affected by sun rays and external factors, it does not deform, and it is absolutely leakproof thanks to its specially designed black EPDM gasket and gray TPE gasket.

The slopes of 15 ° and 40 ° on the PVC profile surface accelerate the drainage of the water.

Specially designed water channel, outward angle of 4 ° and water collection reservoir allow water and noodle to be thrown out easily.

The difference in height between the outer wall and the inner wall in the water discharge channels prevents the rainwater being discharged from entering by the influence of the wind. In addition, these channels, which do not contact the support sheet area, also provide ventilation.

Since the hinge screw is thrown directly onto the hinge support plate, the risk of sagging of the wing over time is lifted.

Nails under the PVC profile; Easy installation and disassembly, elimination of scales during installation of PVC windows, reduction of heat transfer and also all PVC profiles work in harmony with profiles.

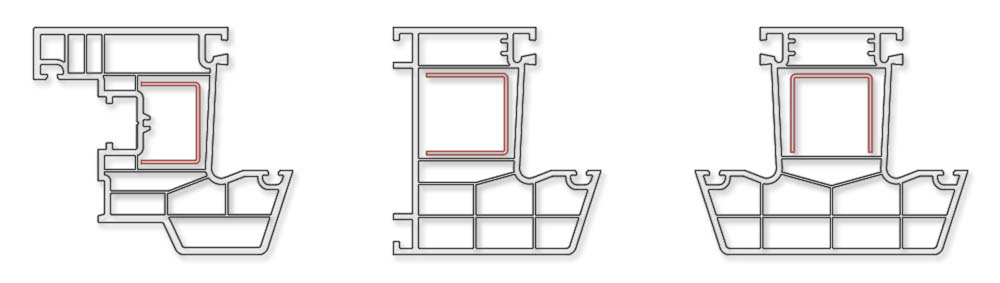

PVC profiles; Resistant to external loads because it is reinforced with specially designed double corrugated and galvanized single type reinforcing sheets.

All PVC main profiles provide excellent thermal insulation as they have at least 3 chambers.


  • Profile Width (mm): 70
  • Number of Chambers (Ad): 5
  • Air Permeability Class: 4
  • Water Sealing Class: 9A
  • Wind Load Resistance Class: C3
  • Sound Insulation(db): 34
  • Profile Heat Insulation(W/m2°K): 1,45
  • Window Heat Insulation(W/m2°K): 1,30
